LED Bulbs Upgrade Kit for 2017-2021 Ford F250

The LED bulbs for 2017 2018 2019 2020 2021Ford 250 are so much better than the original halogen bulbs. Including forward lighting high and low beam, fog light, front/rear turn signal, front/rear side marker, brake light, back up light, license plate light… It’s a great safety feature for night driving especially in bad weather. They are a night and day difference from halogens and cheap LEDs.



LED Bulbs replacement model & technical specifications

Package Included:

• 4 Y13 Series H13/9008 led headlight bulbs (High & Low Beam)
• 2 I9 Series H10 led bulbs (Fog Light)
• 2 7443 Amber/White (Front Turn Signal)
• 2 Load Resistors (For Front Turn Signal)
• 2 T10 Amber (Front Side Marker)
• 2 3157 Amber (Rear Turn Signal)
• 4 3157 Red (Rear Side Marker & Brake Light)
• 2 7443 White (Back up)
• 2 T10 White (License Plate Lights)

H13/9008 led headlight bulbs (High & Low Beam)

• Model: H13/9008 (2pcs)
• Voltage: DC12V-24V
• Lumen: 16,000LM/pair
• Current: 3A
• Power: 80W/pair
• Light source: LMP
• Color Temp: 6500K white
• Life: >50,000 hrs

 H10 led bulbs (Fog Light)

2000lm/bulb, 4000lm/set，3 times brighter than halogen bulbs 6500K white CSP led chips LED bulb and original halogen bulb 1:1 same light filament position DC 9-30v wide voltage, IP65 waterproof Plug & Play, Non-polarity plugs, mini-sized body

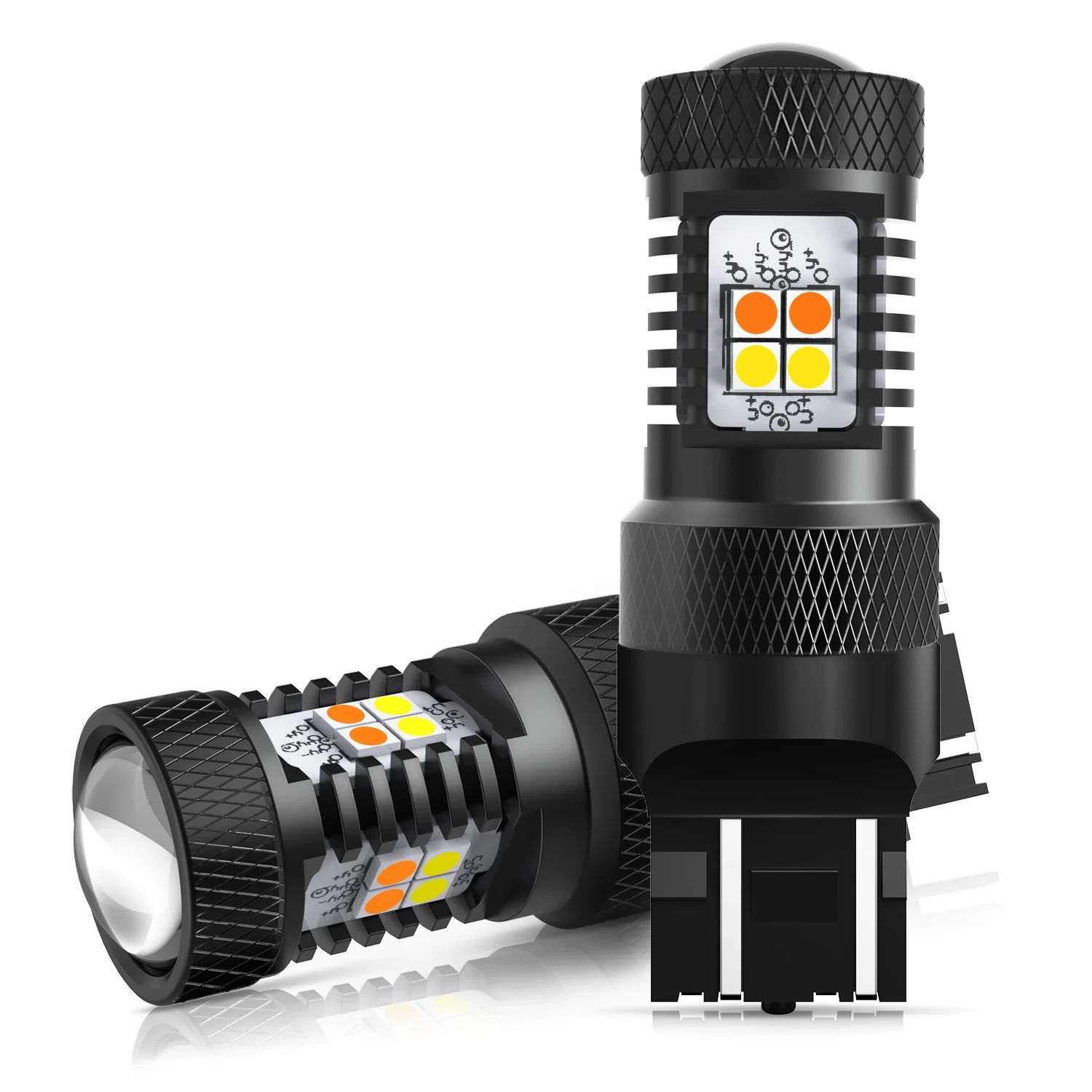

7443 Front Turn Signal, Switchback

• Voltage: DC 9-18V
• Power: 8.4W
• LED Type: 16pcs 3030SMD
• Color: Amber Yellow
• Socket Type: Compatible with both CK and US standard sockets

The turn signal flashes "amber-off-amber-off" instead of "amber-white-amber-white" much easier to see.
Dual function: These will only work for dual function lights that have both the parking/city light and turn signal function in one bulb

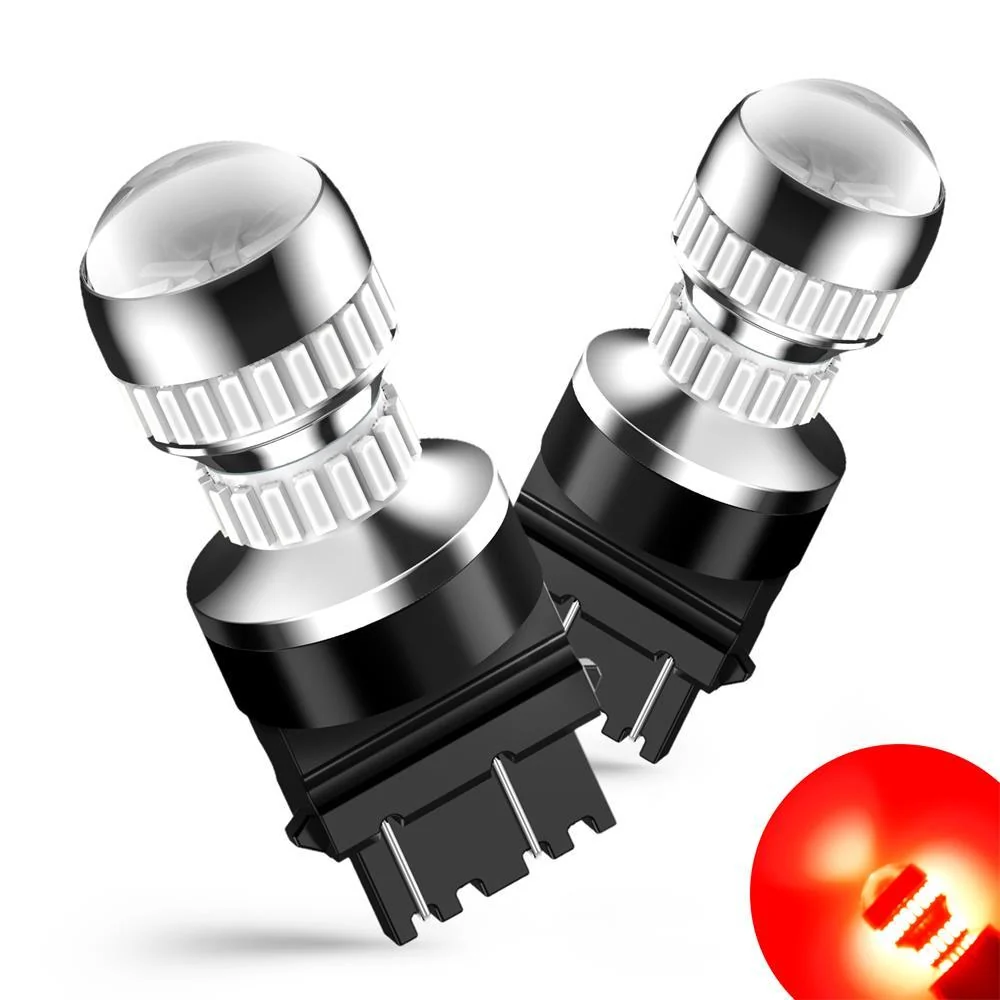

3157 Brake Light/ Rear Side Marker

• Color: Red
• Working Voltage: DC9V-16V (Fits 12V Vehicles)
• Current:0.45A
• Power: 5.5W
• LED Chip Type:54 pieces 4014 SMD
• Application: Used for upgrading stock dim 3156/3157 turn signal light rear/front, side marker light, etc.

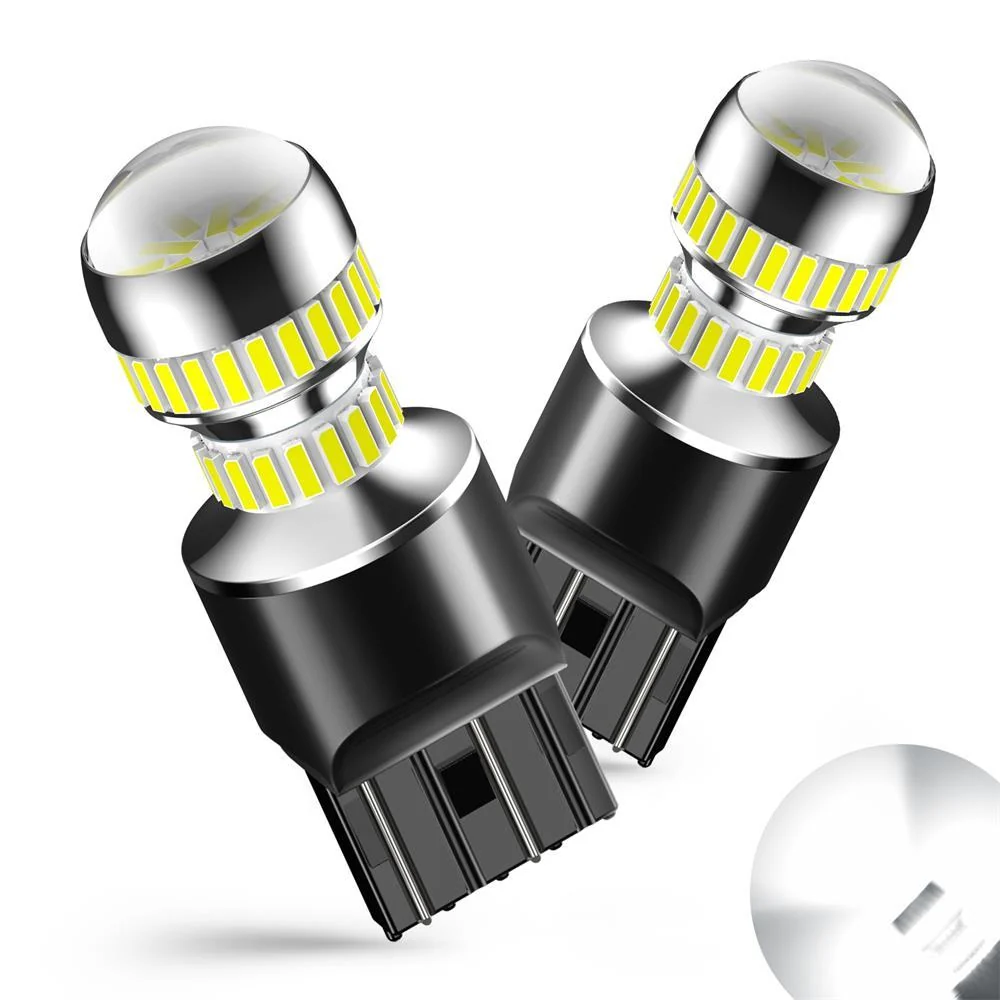

7440/7443 Back Up Light

Color: 6000K White Working Voltage: DC9V-16V (Fits 12V Vehicles) Current: 0.45A Lumen: 1300LM per bulb LED Chip Type: 54pcs 4014SMD

3157 Rear Turn Signal, Amber Color: Amber Voltage: DC 9-18V Power: 28.8W LED Type: 3030SMD

168/194 Front Side Marker, Amber Color: Amber Yellow Voltage: 12V Power: 2W/pc LED Chip Type: 24pcs 3014SMD

T10/194 License Plate, White Color: White Voltage: 12V Power: 2W/pc LED Chip Type: 24pcs 3014SMD



If you need the other LED bulbs, please check the model user manual or contact us by mail at [email protected]
